Package contents may vary depending on the selected option, such as front brake, rear brake, or front and rear set.
Show disc side, fork structure and caliper mount.
Show rear disc side, swingarm area and caliper direction.
Show the power‑off sensor connector.
Built specifically for electric scooters, NUTT A5-D delivers stable hydraulic braking and integrated power cut-off protection for safer urban riding.
Designed specifically for electric scooters, the NUTT A5-D combines hydraulic braking performance with integrated safety technology for confident urban riding.
Automatically interrupts motor power when braking, providing additional safety for electric scooter riders.

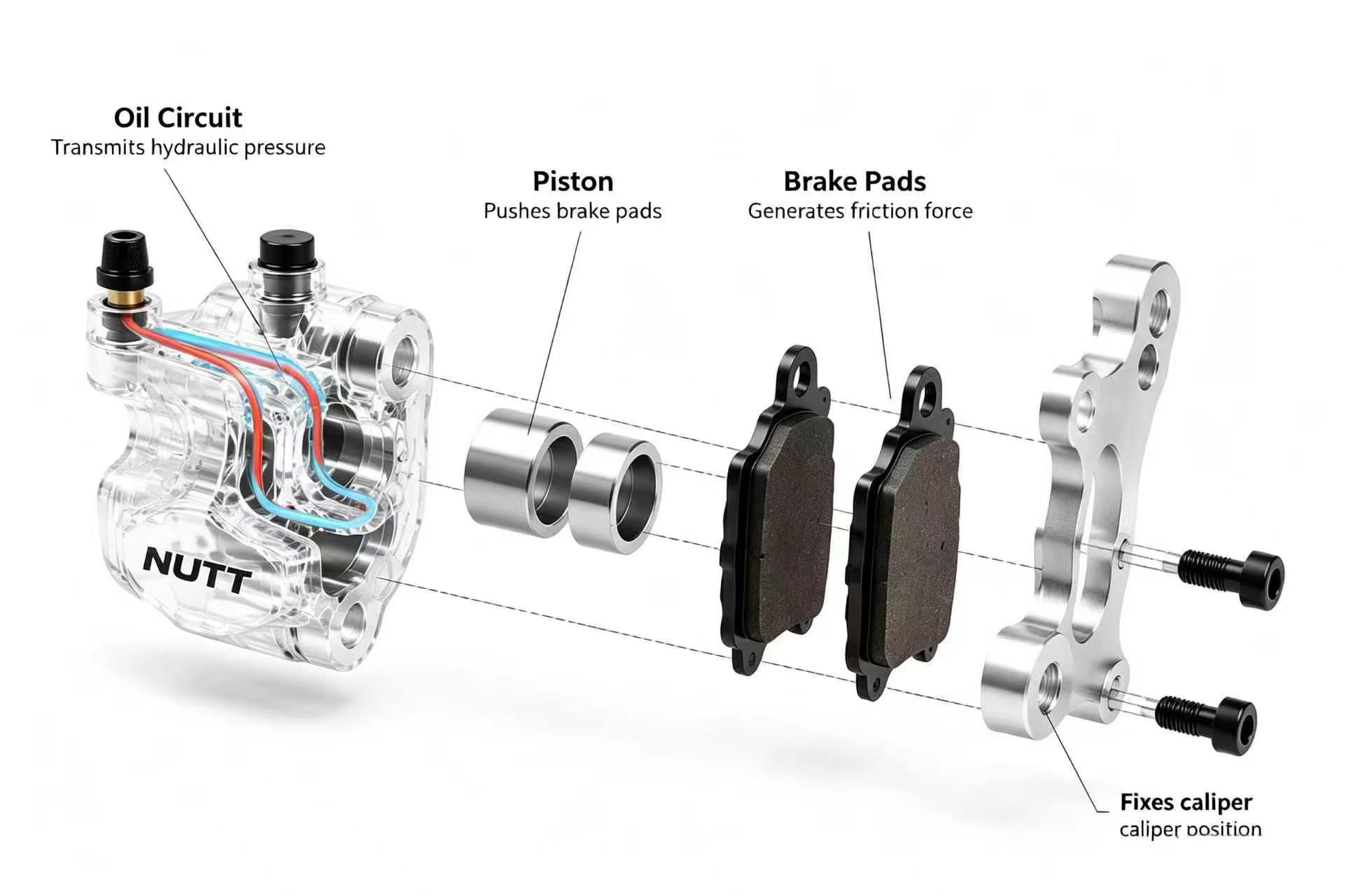

Provides faster response, smoother braking control, and consistent stopping performance.
Engineered for electric scooters with reliable mounting compatibility and long-term durability.
| Parameter | NUTT 2-Piston Hydraulic Brake | Ordinary Brake |
|---|---|---|
| Braking Performance | Sensitive & stable braking | Slow response, unstable stop |
| Sensor Feature | Built-in power-off sensor, protects motor & circuits | No power-off sensor, risk of circuit burnout |
| Sealing Structure | Leak-proof sealing, low maintenance | Poor sealing, easy oil leakage |
| Installation | Direct bolt-on replacement, no extra mods | Need modification & extra adaptors |
| Piston Structure | 2 Piston CNC Aluminum Body | Plastic 2-piston, easy deformation |
| Tube Length Option | Custom 1300/2100mm available | Fixed tube length only |
| Warranty Period | 1 Years Official Warranty | 6 Months Short Warranty |
| Oil Bleed Design | Quick Oil Bleed System | Complicated messy maintenance |
Why 80% of riders regret sticking with cable brakes — and how NUTT hydraulic changes everything.
Quick answers to the most common questions about NUTT hydraulic brake systems.
Yes, the NUTT A5-D is designed as a direct bolt-on replacement for popular electric scooters like Dualtron, Zero, KuKirin, and Booster ES3. It comes with a plug-and-play design, so you won't need any extra modifications or adapters for a standard installation.
Yes — but the OOTD T10 needs one small extra part. Fit a 3mm spacer between the motor and the brake rotor. This pushes the rotor and the caliper bracket outwards as a single unit, giving the A5-D the clearance it needs to sit squarely over the rotor.
It's very straightforward. The ergonomic design includes a simple reach adjustment mechanism. You can easily bring the brake lever closer to the handlebar without any tools, making it comfortable for riders with smaller hands and reducing finger fatigue on longer commutes.
Bleeding hydraulic brakes can be messy. Our quick oil bleed system simplifies maintenance by making it much easier to remove air bubbles from the system, ensuring consistent braking performance. It's a cleaner, faster process that you can even do at home.

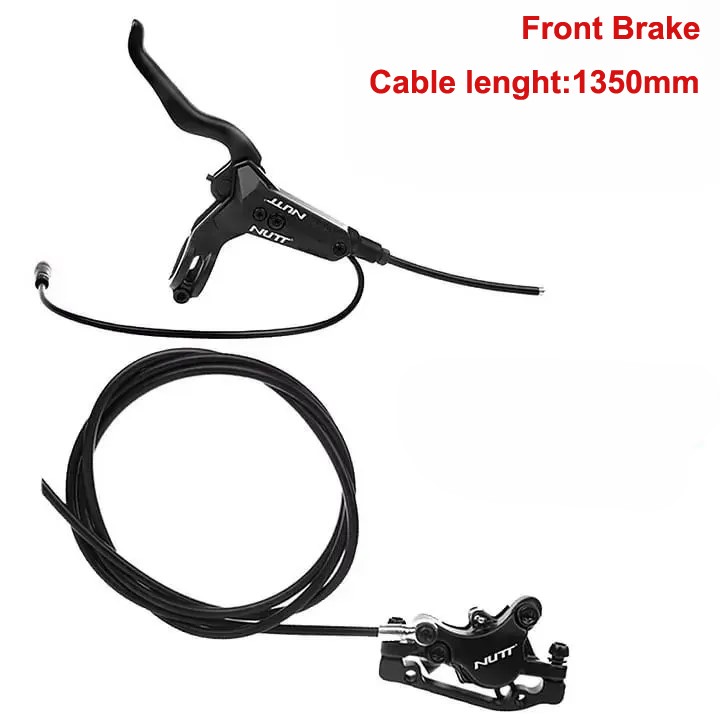

We understand scooters come in different sizes. The A5-D offers custom tube length options, typically 1300mm for the front and 2200mm for the rear, so you can select the length that perfectly fits your specific scooter model to avoid messy routing.
