Package contents may vary depending on the selected option, such as front brake, rear brake, or front and rear set.
Show disc side, fork structure and caliper mount.
Show rear disc side, swingarm area and caliper direction.
Show the power‑off sensor connector.

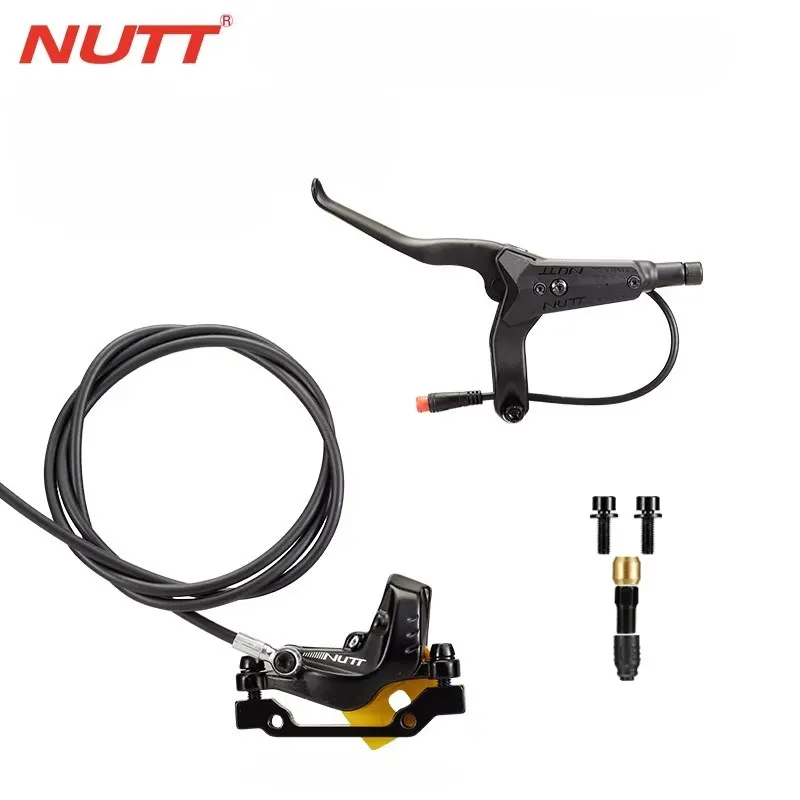

Developed for Hiley Supra TK, RS and XS models, the NUTT four-piston hydraulic brake system delivers stronger braking power, improved control and stable performance for high-speed riding.
Designed for Hiley Supra TK, RS and XS electric scooters, the NUTT four-piston hydraulic brake system delivers stronger braking force, improved modulation and reliable control for high-speed riding.
Four hydraulic pistons provide stronger and more balanced braking force for high-performance electric scooters.
Optimized hydraulic transmission delivers fast response and precise braking modulation during high-speed riding.
Designed specifically for Supra TK, RS and XS models as a high-performance braking upgrade solution.
| Parameter | NUTT Hydraulic Brake | Ordinary Brake |
|---|---|---|
| Piston | 4 Piston Aluminum | 2 Piston Plastic |
| Tube Length | Custom 1200mm | Fixed Only |
| Material | CNC Forged Alloy | Cast Iron |
| Warranty | 1 Years | 6 Months |
| Bleed System | Quick Oil Bleed | Complicated Maintenance |
Why 80% of riders regret sticking with cable brakes — and how NUTT hydraulic changes everything.
Quick answers to the most common questions about NUTT hydraulic brake systems.
Absolutely. For high-power, 60V scooters like the SUPRA, TK-RS, and TK-XS that are capable of high speeds and often used for heavy-load or off-road riding, a 4-piston brake is a critical upgrade. It provides the significantly stronger stopping power needed to safely and effectively control these heavy, fast machines.
The widened opening allows for a more powerful and even distribution of clamping force across the larger, thicker brake pads. This results in more responsive braking and better modulation compared to standard, narrower 2-piston designs, giving you superior control.
Yes, it's a huge safety benefit, especially if you ride aggressively, tackle steep hills, or weigh more. Standard pads can overheat and lose braking power (brake fade) on long descents. These high-temperature pads ensure your stopping power remains consistent and reliable even under extreme heat, preventing dangerous fade.
For this specific brake set to work safely and correctly, it is essential to use it with the designated 140x2.3mm thick heavy-duty rotors. The caliper is calibrated for this precise thickness. Using a thinner rotor will result in poor brake feel and significantly reduced stopping power.
A waterproof sensor is vital for an e-scooter that might encounter rain, puddles, or mud. It ensures the critical safety function of cutting motor power upon braking remains reliable and does not fail due to moisture or dirt ingress, protecting both you and the scooter's electrical system.
